Types of Scaffolding

Classification Framework under BS EN 12810–12811

Scaffold systems in Singapore are classified under two European standards adopted into national practice: BS EN 12810 (Prefabricated Component Scaffolds) and BS EN 12811 (System Scaffolds and Design). Ezzogenics organises its inventory across six primary system categories — frame, tubular, suspended, tower, mobile, and supported — each with defined structural configurations, load ratings, and mobility characteristics. System selection is an engineering decision, not a procurement preference: it is determined by project height, load demand, geometric complexity, duration, and site constraints.

Load classes under BS EN 12811-1 range from Class 1 (0.75 kN/m², inspection access) through Class 6 (6.0 kN/m², heavy-duty shoring). Mobility is classified as static (fixed-position scaffolds with structural ties), semi-mobile (castor-mounted systems with braked wheels for repositioning within a defined zone), and fully mobile (suspended platforms with vertical hoists). Ezzogenics' engineering team evaluates these parameters during the design phase and specifies the system category with PE-endorsed documentation for BCA compliance.

Frame Scaffolds: Repetitive-Bay Efficiency

Frame scaffolds (H-frame or box-frame systems) are prefabricated welded assemblies comprising vertical frames, horizontal ledgers, and diagonal cross-braces. They are the most efficient system for repetitive-bay applications: high-rise residential facades, warehouse cladding runs, and industrial tank farms. Ezzogenics' frame systems achieve Class 2–4 load ratings (1.5–3.0 kN/m²) with bay widths of 0.75–1.5 m and platform heights in 1.2–2.0 m increments. Frame scaffolds require structural ties at 4.0 m vertical and 6.0 m horizontal intervals for aspect ratios exceeding 3:1. Erection rates of 20–30 bays per day per team make frame systems the fastest-deploying scaffold category for linear facade work.

Tubular Scaffolds: Geometric Adaptability

Tubular (tube-and-fitting) scaffolds are constructed from individual 48.3 mm steel tubes connected by forged-steel couplers. They offer complete geometric configurability for non-standard structures: bridge soffits, circular tanks, heritage facades with irregular stone courses, and atrium spaces with sloped glazing. Every tubular configuration requires PE-endorsed structural design under Singapore's WSH Regulations. Ezzogenics' tubular systems utilise S355J2 steel with hot-dip galvanising, drop-forged couplers rated at 6.25 kN slip resistance, and full design dossiers retained for regulatory audit. Erection is slower than frame systems (8–12 bays per day) but offers superior geometric precision.

Suspended Scaffolds: Vertical Facade Access

Suspended scaffolds comprise working platforms suspended by wire ropes from overhead anchors or roof rigs, with vertical mobility provided by electric hoists. They are the exclusive system for high-rise facade access exceeding 24 storeys where ground-based scaffold erection is impractical. Ezzogenics' suspended platforms comply with BS EN 1808, featuring dual independent wire ropes (primary and safety), secondary fall-arrest lines, overload-limiting devices, and emergency descent systems. Platform widths range from 0.6 m (single-person) to 2.5 m (multi-trade with material staging). All suspended systems require anchor-load testing (2× working load), PE anchor-design, and MOM registration before commissioning.

Tower and Mobile Scaffolds: Independent Access

Tower scaffolds are independent structures with prefabricated frames, stairway modules, and outrigger stabilisers, designed for access without structural ties to the building. Height limits are 4× base dimension (freestanding) or 8× base dimension (with outriggers) under BS EN 12811-1. Ezzogenics supplies aluminium towers to 12.0 m and steel towers to 20.0 m with tied configuration. Mobile scaffolds are tower systems mounted on braked castor assemblies, permitting horizontal repositioning without dismantling. Ezzogenics' mobile systems incorporate 150 mm polyamide castors with twin-lock brakes, movement protocols under WSH Regulations, and wind-speed thresholds of 8 m/s for repositioning. Both categories are ideal for interior fit-out, atrium maintenance, and mezzanine construction.

Supported Scaffolds: Ground-Based Heavy Duty

Supported scaffolds are ground-based or slab-based structures with all loads transferred through standards, ledgers, and bracing to foundation points. They are the default system for general building construction, formwork support, and heavy-duty material staging. Ezzogenics designs supported systems across Class 1–6 load ratings, with platform widths from 0.6 m to 2.5 m and heights to 40.0 m with structural ties. Ground-bearing capacity (minimum 100 kN/m²), tie-connection torque (50 Nm), and weekly inspection intervals are mandatory under WSH Regulations. Supported scaffolds offer the highest load capacity and the most versatile platform configuration of all system categories.

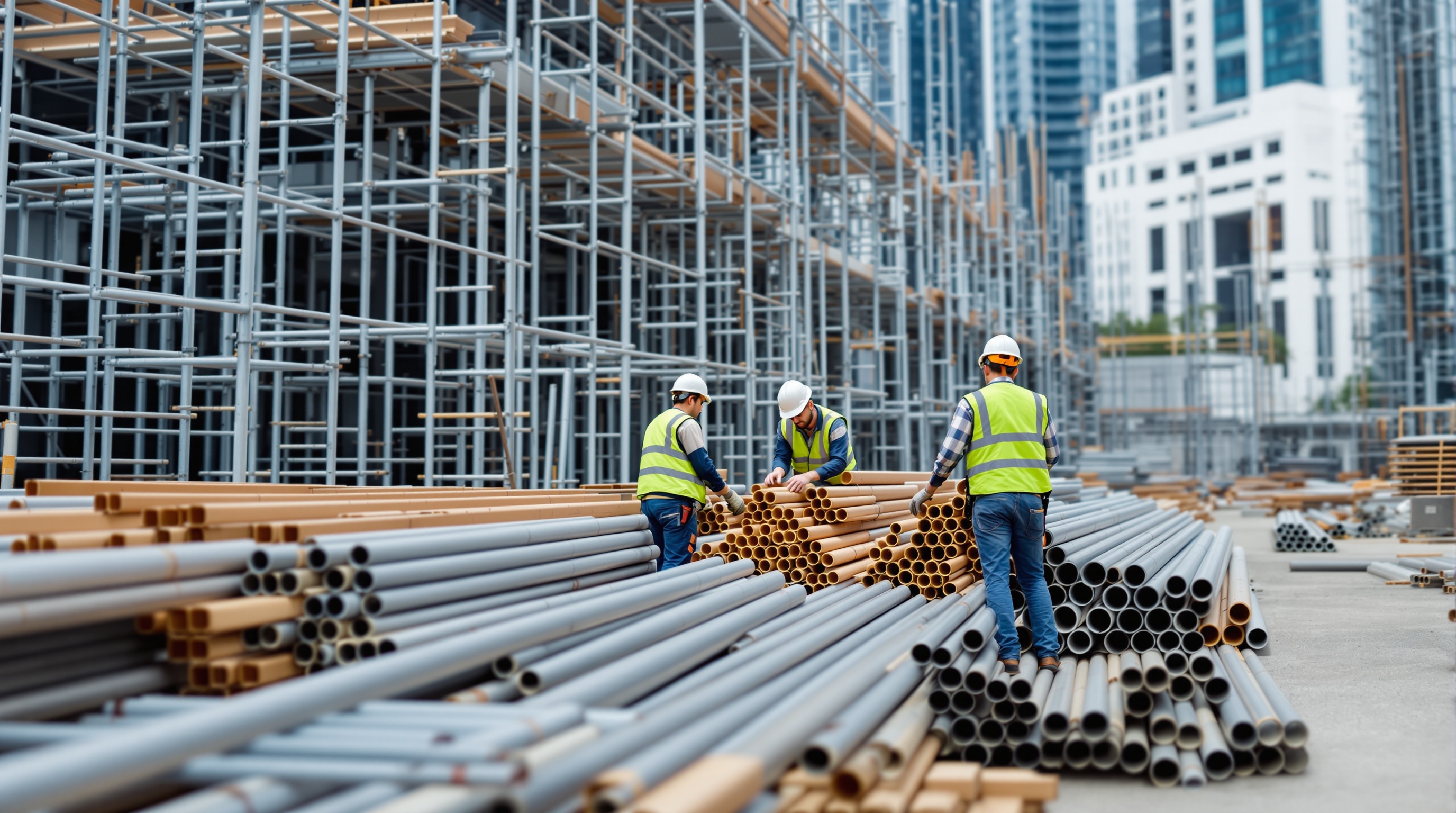

System Selection by Ezzogenics Engineers

System selection is not determined by cost or availability — it is an engineering decision based on structural-drawings review, site-photograph assessment, load-demand calculation, and regulatory-compliance mapping. Ezzogenics' engineers issue system recommendations within 48 hours of receiving project documentation, accompanied by PE-endorsed design drawings, method statements, and BCA submission packages. Contact Ezzogenics with your project parameters for a system-specific proposal with full technical documentation.
